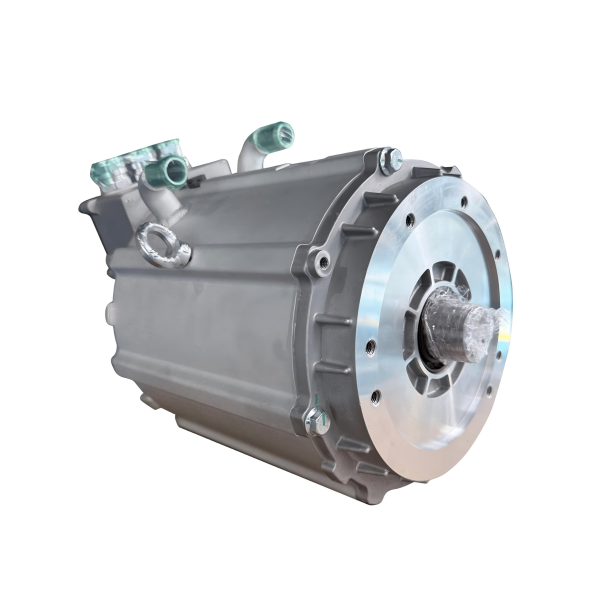

Motors(PMSM) N Series
Motors(PMSM) N Series
Model | N230-50 | N230-60 | N230-80 | N230-100 | N400-120 | N200-200 |
Operating Voltage(V) | 350 | 400 | 540 | 400/540 | 400/540 | 540 |
Rated Power(Kw) | 50 | 60 | 80 | 100 | 120 | 200 |
Peak Power(Kw) | 100 | 120 | 160 | 200 | 200 | 400 |
Rated Speed(rpm) | 3979 | 4775 | 6400 | 1900 | 2300 | 4000 |
Peak Speed(rpm) | 9000 | 9000 | 9000 | 8000 | 8000 | 8000 |
Rated Torque(N.m) | 120 | 120 | 120 | 500 | 500 | 500 |
Peak Torque(N.m) | 300 | 350 | 350 | 1000 | 1000 | 1000 |
Weight(kgs) | 50 | 55 | 55 | 65 | 70 | 80 |
