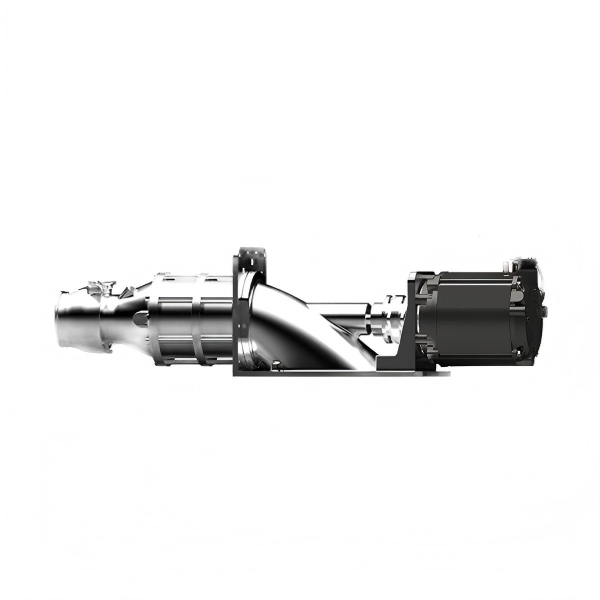

120mm Water Jet Drive

Operating Voltage(V)

72-96

72-96

96-144

Impeller Diameter (mm)

120

Rated Power(Kw)

10

15

25

Input Power(Kw)

5-40

Peak Power(Kw)

20

30

55

Input Speed(rpm)

2800-7500

Rated Speed(rpm)

5600

5750

6000

Steering Control Type

Mechanical Control

Peak Speed(rpm)

6500

7500

8000

Housing Material

Aluminum Alloy

Rated Torque(N.m)

17

25

40

Shaft/Impeller Material

Stainless Steel/Steel

Peak Torque(N.m)

55

76

95

Single Pump Dimension(mm)

706*200*220

Weight(kgs)

22

24

26

Single Pump Weight(kgs)

12.88
