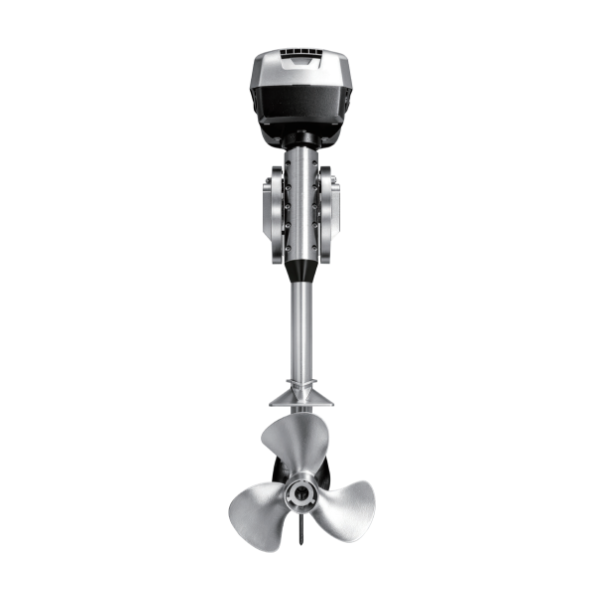

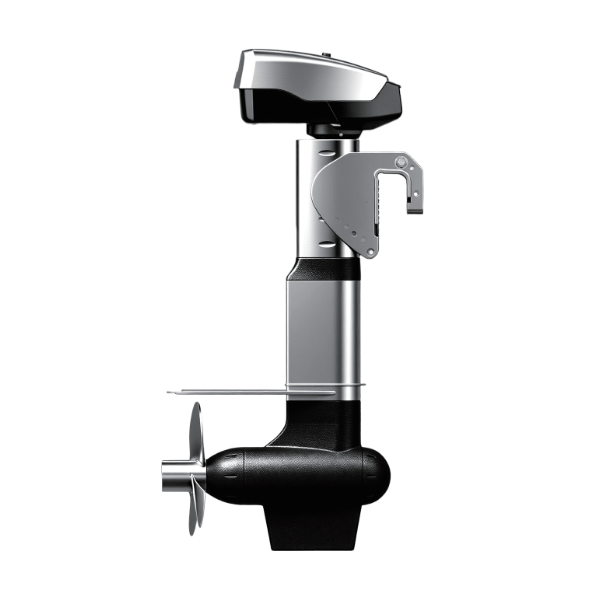

M133F Outboard
M133F Outboard
Model | M133F |
Operating Way | Front Control |
Operating Voltage(V) | DC96~144 |
Maximum Input Power(Kw) | 8.0/11.0/15.0 |
Full-load Speed (Forward) | 1500-2000rpm |
Motor Starting Method | Soft Start |
Control Method | Control Box |
Communication Protocol | 485/CAN |
Size(mm) | 452*277*1279 |
Tilt Method | Mechanical |
Maximum Tilt Angle | 60° |
Propeller Diameter (mm) | 340 |
Operating Temperature | -10~40° |
Storage Temperature | -20~60° |
