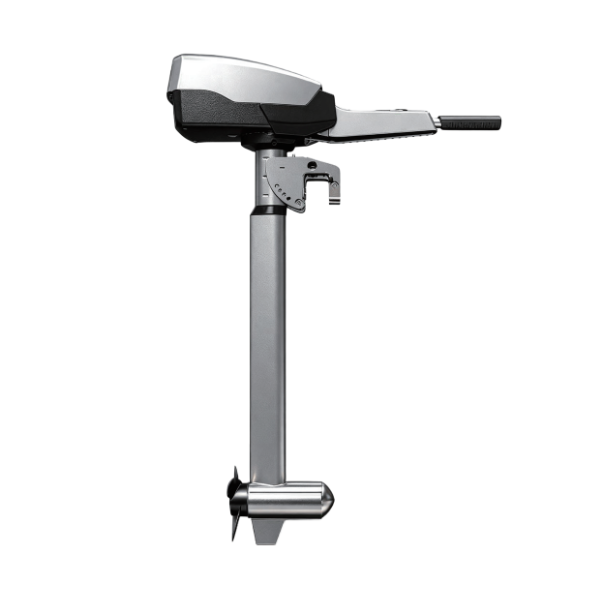

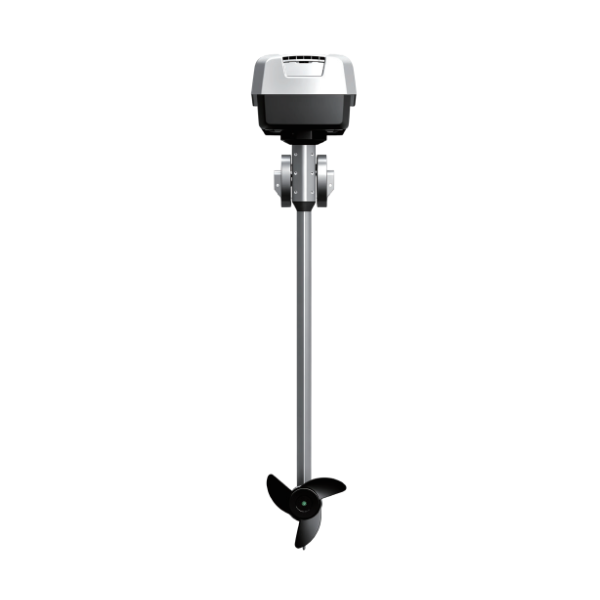

M90B Outboard
M90B Outboard
Model | M90B |
Operating Way | With Tiller |
Operating Voltage(V) | DC12~48 |
Maximum Input Power(Kw) | 0.35/0.7/1.0/1.5/2.0 |
Full-load Speed (Forward) | 1800-2200rpm |
Motor Starting Method | Soft Start |
Control Method | Control Box |
Communication Protocol | CAN |
Size(mm) | 894*277*1183 |
Tilt Method | Mechanical |
Maximum Tilt Angle | 45° |
Propeller Diameter (mm) | 240 |
Operating Temperature | -10~40° |
Storage Temperature | -20~60° |
