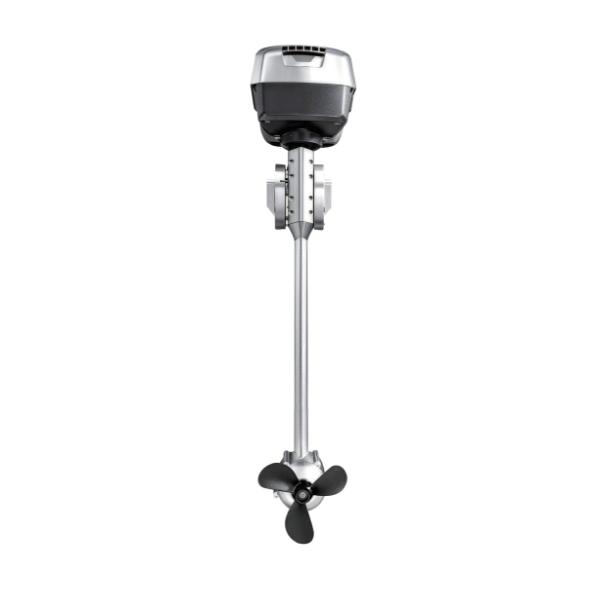

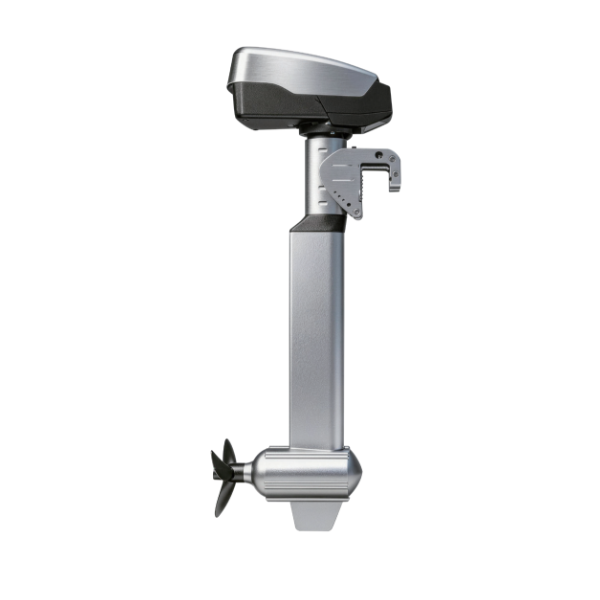

M128F Outboard
M128F Outboard
Model | M128F |
Operating Way | Front Control |
Operating Voltage(V) | DC48~110 |
Maximum Input Power(Kw) | 3.0/4.0/6.0 |
Full-load Speed (Forward) | 1200-1500rpm |
Motor Starting Method | Soft Start |
Control Method | Control Box |
Communication Protocol | 485/CAN |
Size(mm) | 452*277*1282 |
Tilt Method | Mechanical |
Maximum Tilt Angle | 53° |
Propeller Diameter (mm) | 245/285 |
Operating Temperature | -10~40° |
Storage Temperature | -20~60° |
